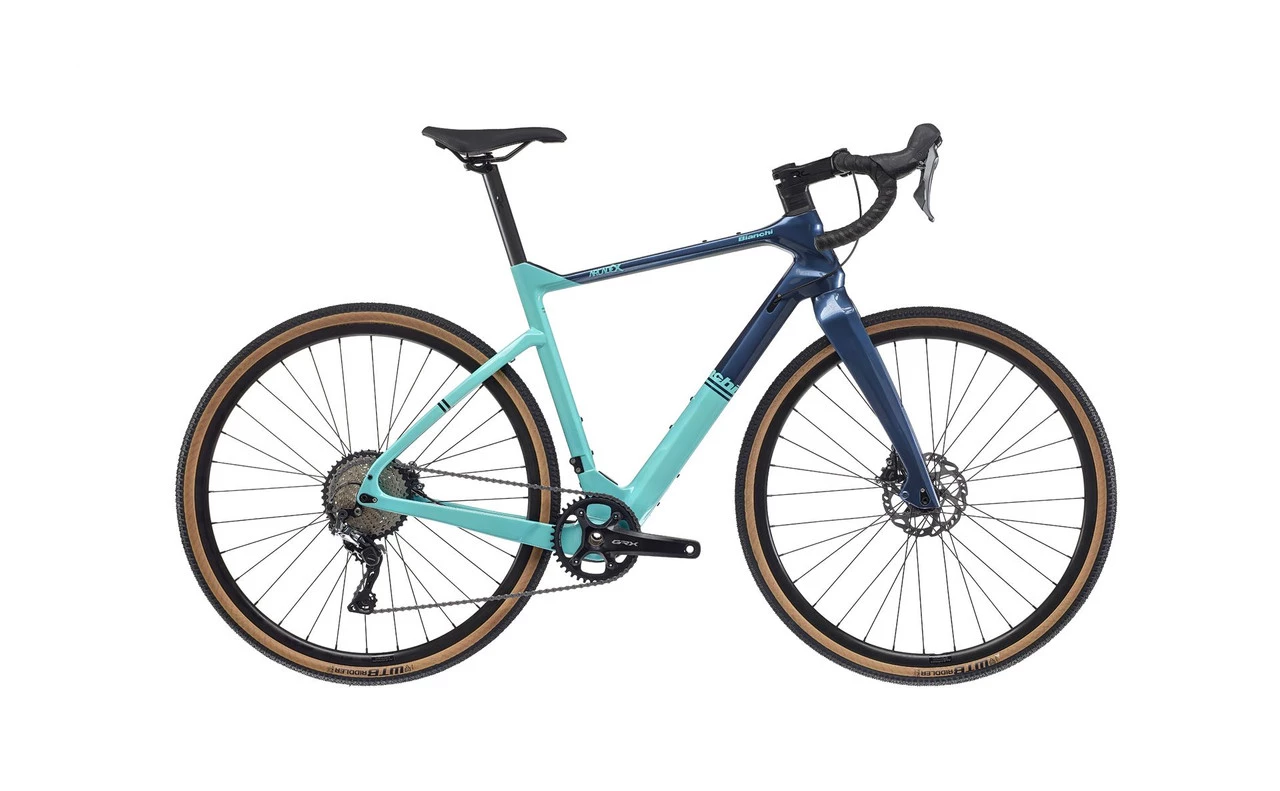

Bianchi Arcadex Shimano GRX Gravel Bike

Gravel superbike in the traditional Bianchi Celest  or a stunning blue/gold and outfitted with the very best gravel group on the market.

Bianchi sleekly included rack and fender mounts to the Arcadex and the frame provides clearance for high-volume tires up to 700×42 or 650×47.

The stock build is 1 x 11 with nothing is stopping you from adding a second chainring up front.

Peloton mag describe reviewed the Arcadex:

The Arcadex is designed to provide a more upright position that stays comfortable over the course of long days, though it’s far from the most slacked-out geometry available in the world of gravel bikes. Even with that more upright position, its aerodynamic features shine through, making it feel swift on those extended stretches of gravel, with steering that tends to stick to a straight line. But when the road gets more technical, it can easily maneuver around quick turns—unlike some other gravel bikes.



FRAME: Arcadex Carbon, 1.5″ headset, seatpost diam. 31.6mm, thru axle 12x142mm, flat mount caliper, Pressfit 41 BB, compatible with 42mm tire and mudguard predisposition
FORK: Bianchi Full Carbon Disc, 1.5″ head, flat mount caliper, thru axle 12x100mm

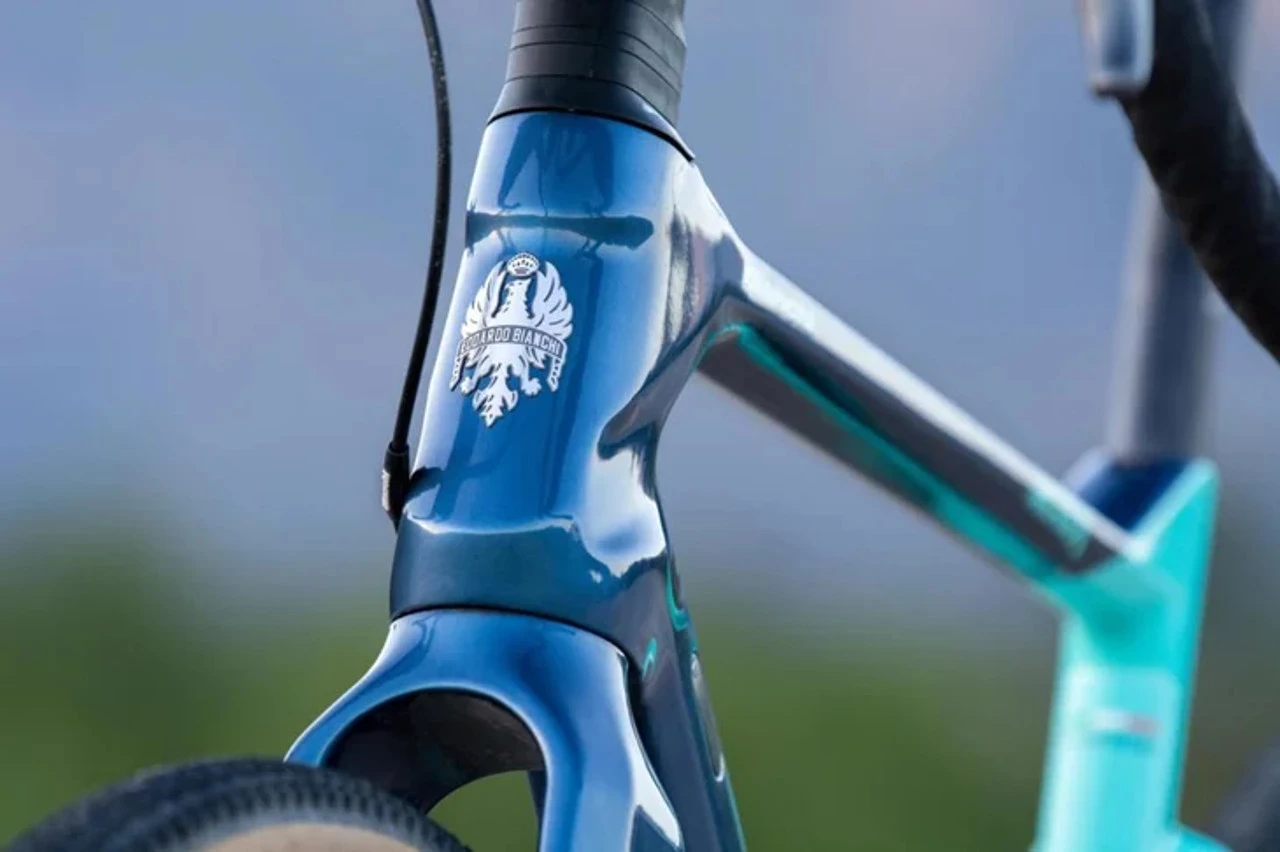

HEADSET: FSA SMR HS with 1.1/8” custom top cone Bianchi, H2475, Internal Headset, Integrated Alloy custom top cup 1.1/8″, 1.5″, 36°/45° ACB

Groupset Shimano GRX 810 1 x 11 Mechanical
SHIFTERS: Shimano GRX 810 ST-RX810 1x11sp
REAR DERAILLEUR: Shimano RD-RX812, GRX 11sp, top normal shadow plus design, direct attachment, direct mount compatible
CRANKSET: Shimano GRX 810 FC-RX810-1 40T, Hollowtech II, Crank Length: 170mm-XS/SM, 172.5mm-MD/LG, 175mm-XL
BB: Shimano SM-BB72-41B
CHAIN: Kmc X11-1 EPT finish
CASSETTE: Shimano SLX CS-M7000, 11sp 11-13-15-17-19-21-24-28-32-37-42T
BRAKE CALIPERS: Shimano BR-RX810
BRAKE ROTOR: Shimano SM-RT70, diam. 160mm

WHEELS:  AlexRims GD24 disc 622-21, tubeless ready with Shimano FH-RS470 Hubs
TIRE: WTB Riddler Comp 700×37

COCKPIT
STEM: Bianchi Reparto Corse by Fsa ST-OS-188/SMR-0°, Alloy 6061 , 1 1/4″, rise 0°, Ext: 80mm-XS/S, 100mm-M, 120mm-L/XL

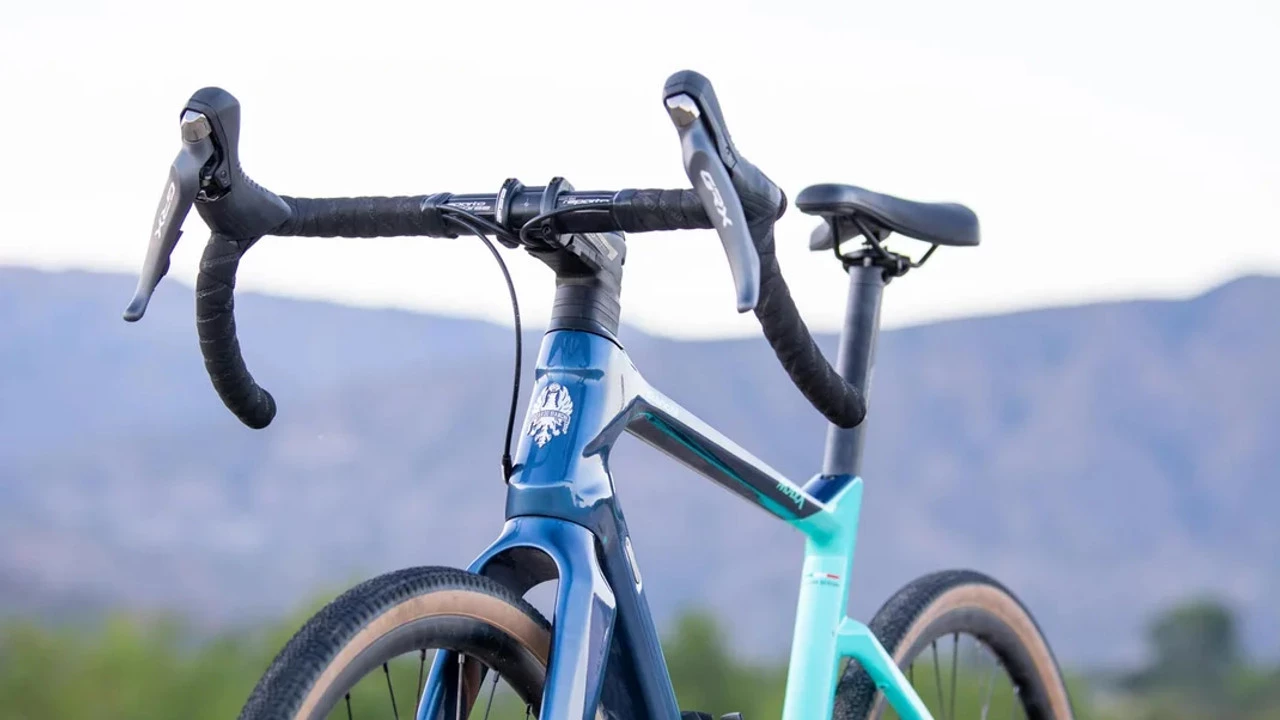

HANDLEBAR: Bianchi Reparto Corse Aluminum 6061, reach 70mm, flare angle 16°, drop cc 120 x size 40cm and 130mm, size: 40cm-XS/S, 42cm-M/L, 44cm-XL
Handlebar Tape: La Spirale Ribbon cork
