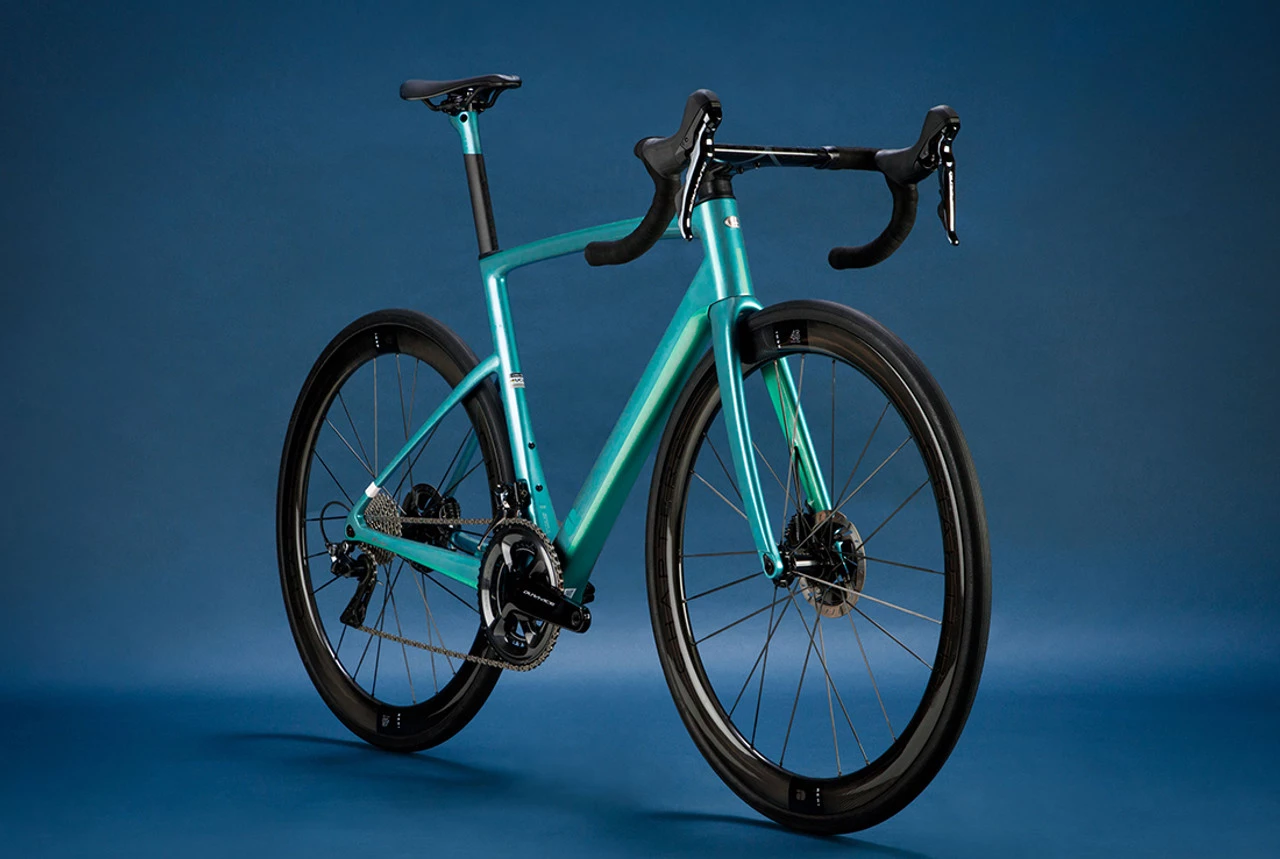

Inspired by the TERE’s Performance All-Road DNA and the AO’s versatility, the TOA has all its cables/hoses tucked away from sight and the wind, creating an aerodynamically seamless transition between the MANA Bar and the TOA’s Kamm-Tail chassis.
Sporting a T47 Bottom Bracket for easy maintenance, the aluminium BB Shell works in unison with the high-tensile carbon carefully laid into the BB area to increase stiffness by up to 7.3% over the TERE. Additionally, the use of a Latex mandrel for the whole front triangle has increased the Headtube stiffness by 23.5% over the TERE for that out of the saddle and power to the pedals moment.
Other enhancements such as the bundled MANA Bar, Quick-Fit headset spacers, up to 32mm of tire clearance, vibration dampening Seatstays and Seatpost makes for a package that ticks all the right boxes.
- Fully integrated cabling – Improved aerodynamics – Clean and sleek aesthetic
- 32mm tire clearance – Improved traction – Improved compliance
- T47 (86.5) BB – Service friendly BB – Improved stiffness
- Aero optimized – Kamm-tail downtube – Integrated fork crown – Integrated cockpit
- Latex mandrels – Improved stiffness – Reduces excess resin
- Dropped seatstays – Improved compliance – Stiffer rear triangle
- Carbon: 100% Made in Japan by Toray
- Fork Rakes (2): XXS, XS, S (53mm offset) and M, L, XL (43mm offset)
- Frame Weight: 1105g (Disc) Size M +/- 3%
- Fork Weight: 425g (Disc) Uncut +/- 3%
- Seatpost Weight: 135g Size M +/- 3%
- Handlebar/Stem (MANA): 395g (100-420mm) +/- 3%
- Headset: 1.5” C2 Integrated System
- Gear Shifting Type: Mechanical & Electric Shifting
- Electronic Shifting: SHIMANO® Di2, SRAM® eTAP & Campagnolo® EPS compatible
- Battery Type: Di2 SM-BTR-2 or BT-DN300 and EPS V3 Battery Compatible
- Tire Clearance: 30mm (ISO) & 32mm Practical
- Brake Type: Disc Only
- Bottom Bracket: Internal T47
- Thru-Axle: Flat Mount FR 12x100mm, RR 12x142mm, E-Thru M12x1.5mm
- Safety Standard: EN ISO 4210:2014
- UCI Accreditation: UCI Approved
Benefits:
- Stiff Racing Frame: Improved Power Transfer & Precise Steering
- Cable Integration: Improved Aerodynamics & Clean Aesthetics
- Compact Kamm-Tail: Aerodynamic & Stiffness where Needed
- Up to 32mm Tire Clearance: Increased Tire Options
- Dropped Stays: Improved Compliance for Endurance Rides
- T47 BB: Noise-free & Easy to Service
- Disc Brakes Only: Improved Braking & Modulation
- Frameset Only: Bespoke & Personal
- Limited Edition: Exclusivity

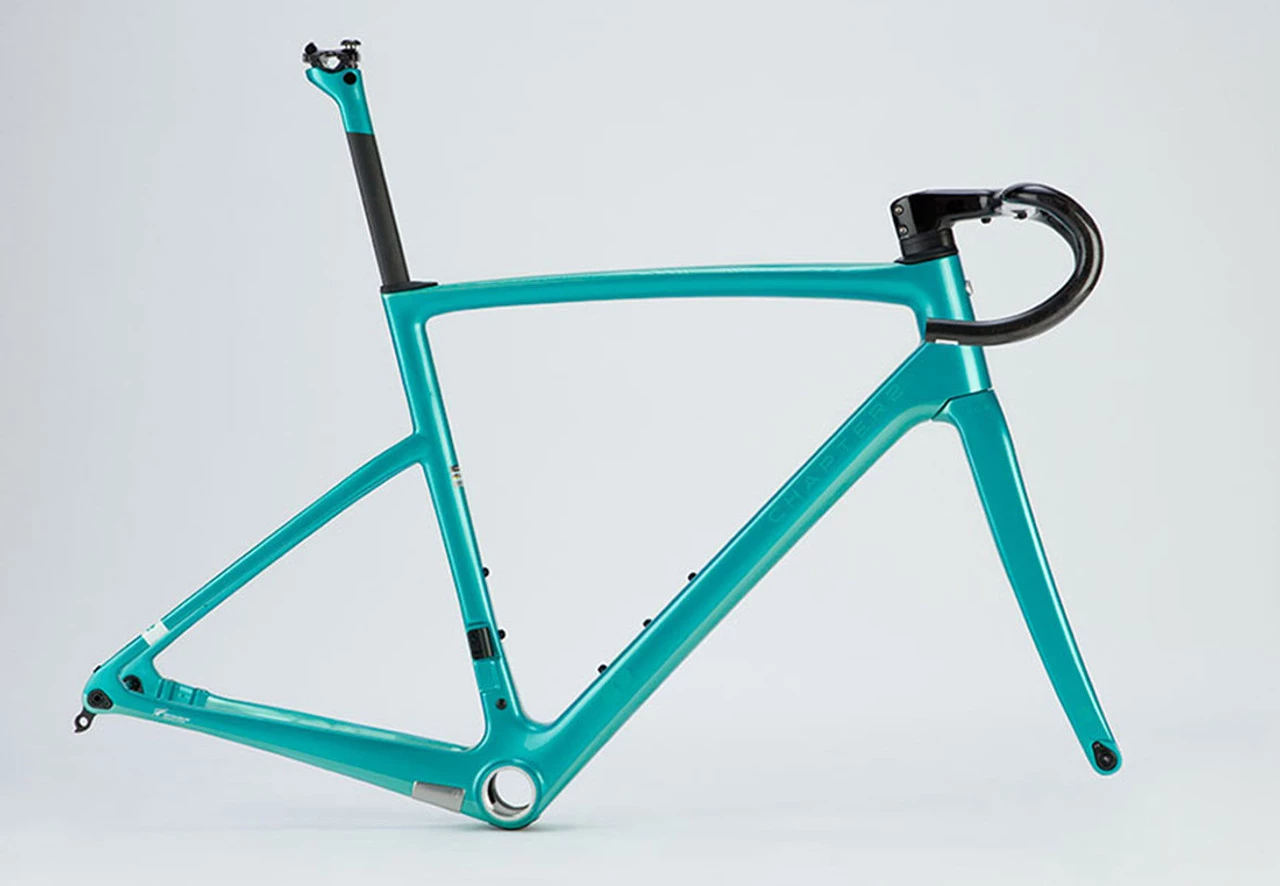

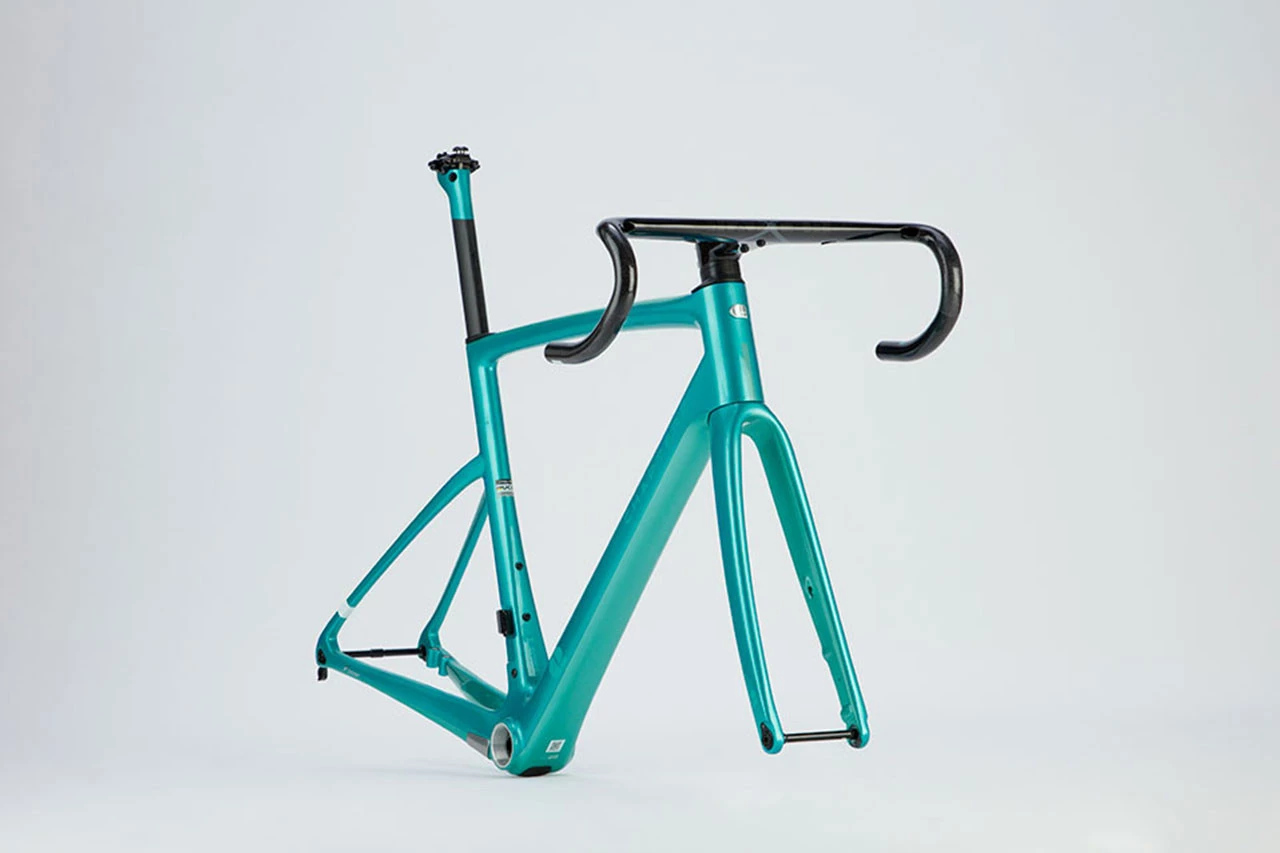

What you get: Frame, Fork, Headset, Seatpost, Thru-Axles, Quick-Fit Spacers, MANA Handlebar
| Frameset | XXS, XS, S, M, L, XL |
|---|---|
| Stem X Bar Top/Drop | 80mm X 38/40cm (C-C), 90mm X 38/40cm (C-C), 100mm X 40/42cm (C-C), 110mm X 40/42cm (C-C), 120mm X 42/44cm (C-C) |
| Type | Frameset Disc Brake |
| Model | Toa |
